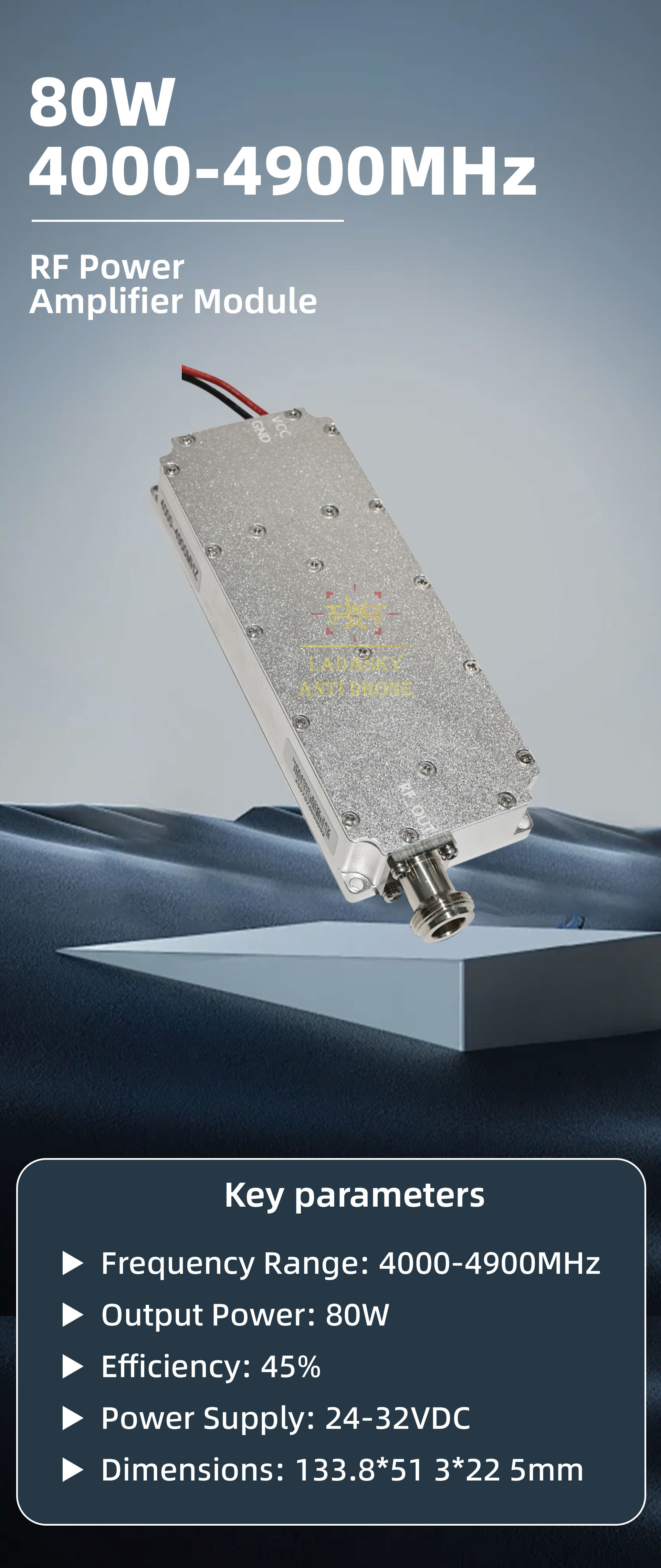

80W GaN Anti-Drone Module 4000-4900MHz for DJI FPV

Name: 80W GaN AntiDrone Module 40004900MHz for DJI FPV
Brand: LDSK
Price: 330 USD

Quality 80W GaN Anti-Drone Module 4000-4900MHz for DJI FPV for sale

Brand Name : LDSK

Model Number : 80W

Place of Origin : Guangdong, China

MOQ : 1

Price : $330-$350

Payment Terms : D/A,D/P,T/T,Western Union,MoneyGram， Paypal

Supply Ability : 50000 pcs per month

Delivery Time : 1-3 workdays

Customization : Customization From 10 To 6700MHZ，10-200W

Frequency And Power : 4000-4900MHZ 80W

Gain : 49dBm

Voltage : 24-32V

Working Efficiency : >45%

Size : 133.8*51.3*22.5mm

Highlight : FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module

Contact Now

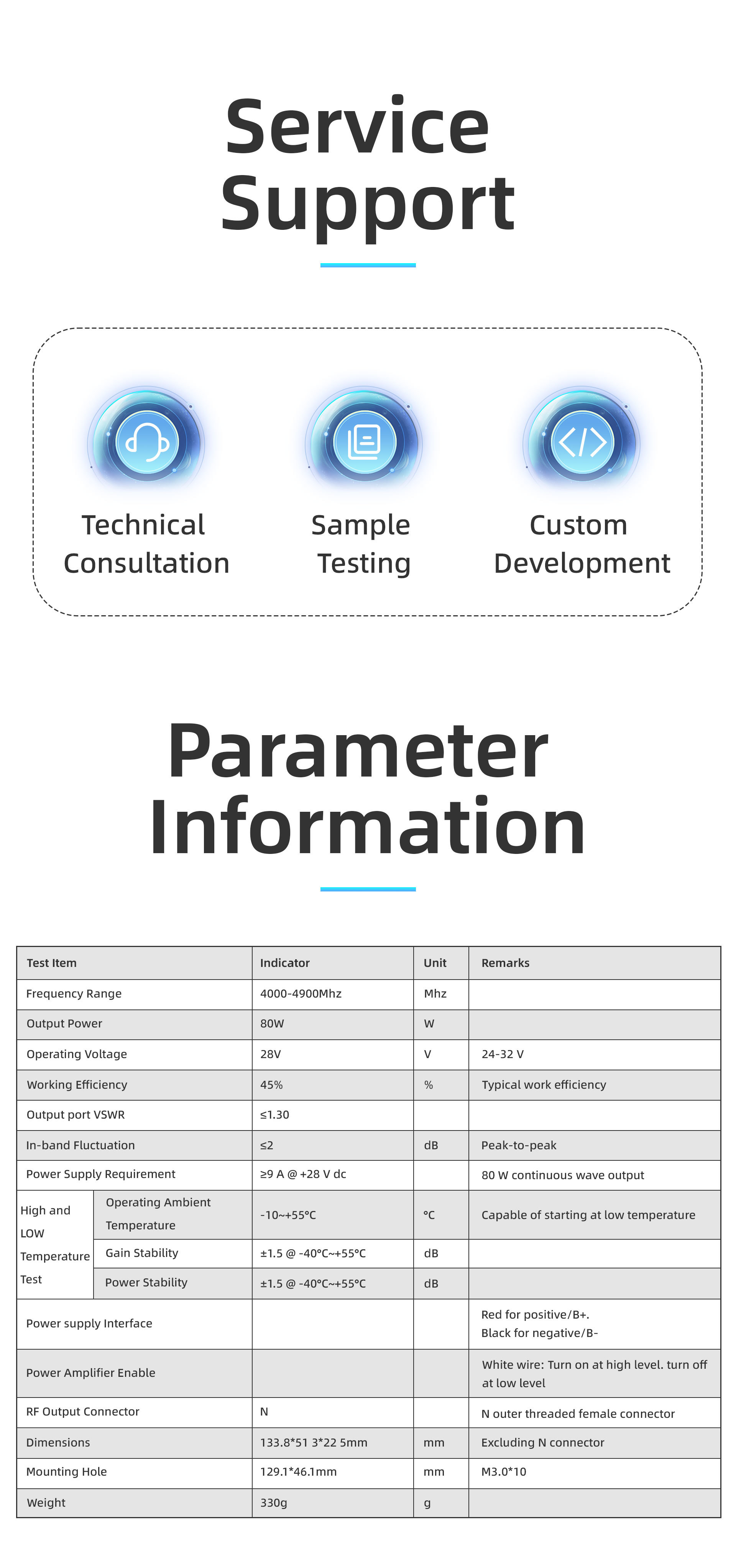

Product Parameters

4000-4900MHz 80W anti drone module for anti drone system

Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W

GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
This document stipulates the radio frequency and monitoring technical indicators of the 420-460MHZ 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
This document applies to all aspects of product design, verification, production and quality inspection of the 420-460MHz 50W power amplifier module/Anti drone module.

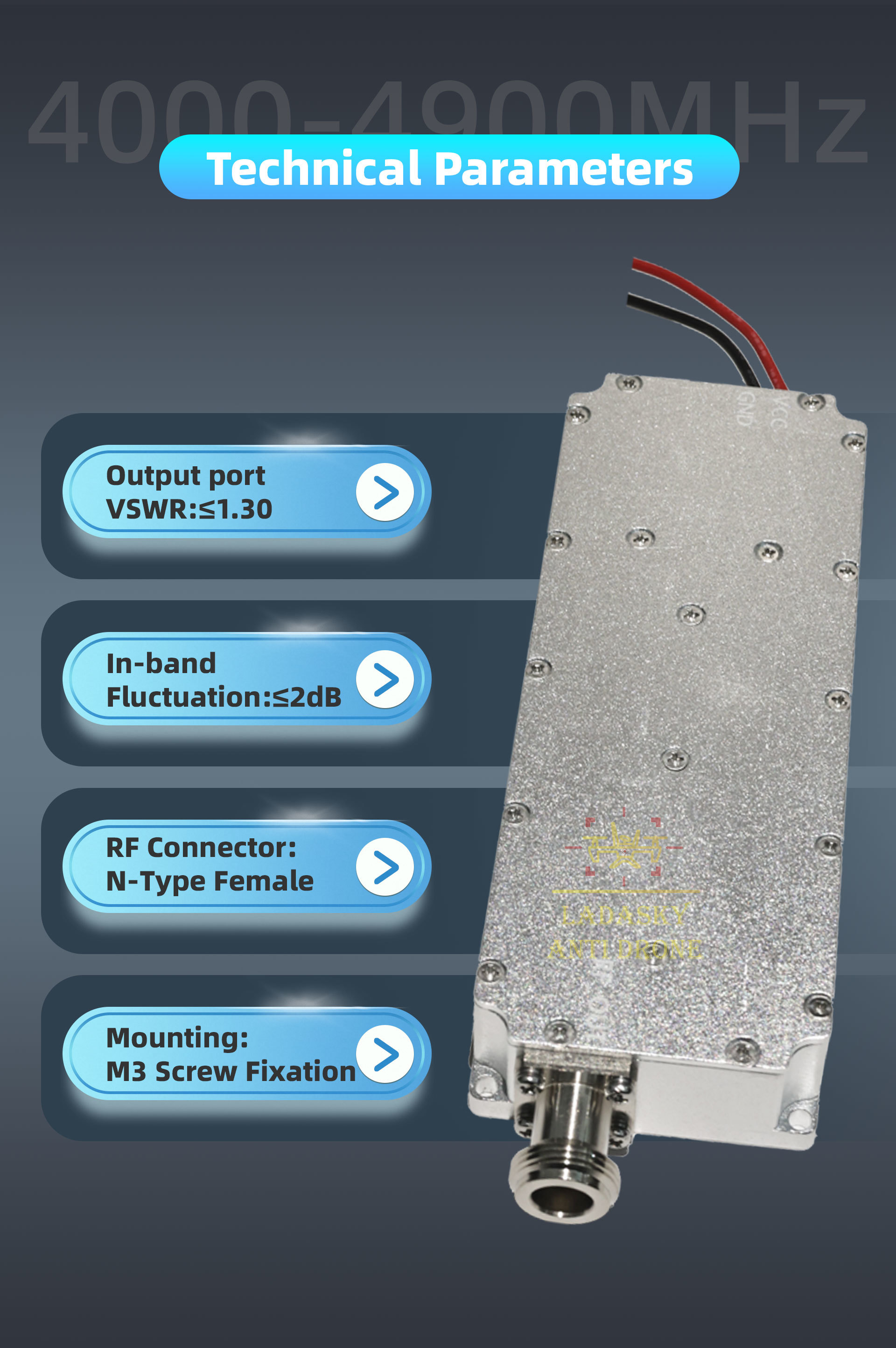

Item name	Technical parameters
Working frequency	4000-49000MHz (Support customization from 10 to 6700MHZ )
Power	80W (Support customization from 10W to 200MHZ )
Supply Voltage	DC 24-32V
Max Output Power	49 dBm
Working Efficiency	≥45%
Passband Riplpe	≤2dB
Operating Temperature	-10~+55ºC
Power supply requirements	≥9A
RF Connector	SMA
Size	37.311219.5mm (Excluding SMA)
Weight	330g
Connect line red	DC24-32V
Connect line black	GND
Connect line white	ENABLE
