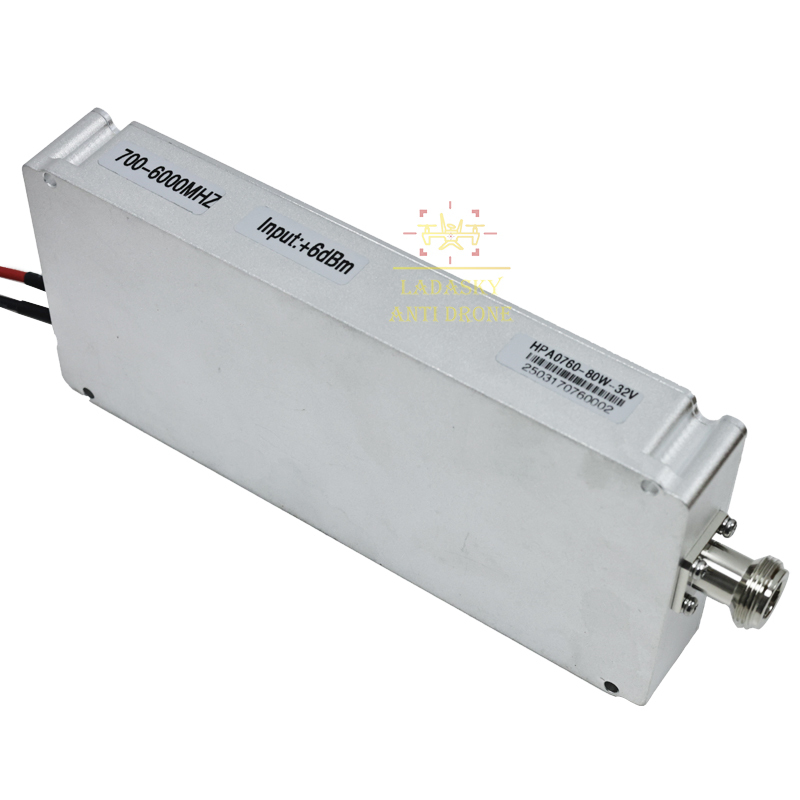

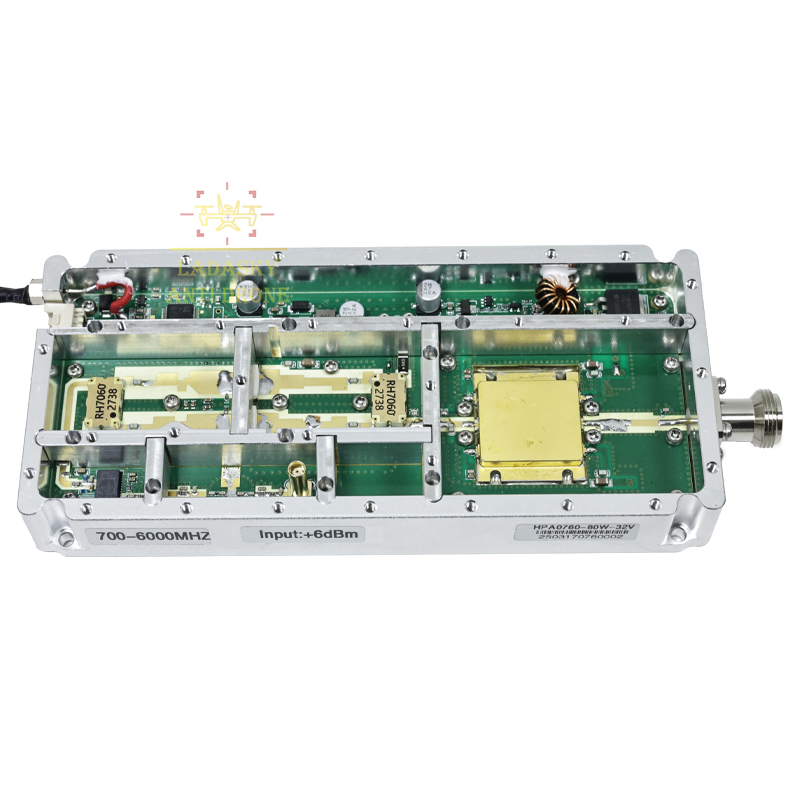

80W 700-6000MHz GaN RF Anti-Drone Module for DJI & Autel

Name: 80W 7006000MHz GaN RF AntiDrone Module for DJI amp Autel
Brand: LDSK
Price: 330 USD

Quality 80W 700-6000MHz GaN RF Anti-Drone Module for DJI & Autel for sale

Brand Name : LDSK

Model Number : LDSK-TZ-GAN-10

Certification : Guangdong, China

Place of Origin : China

MOQ : 1

Price : $330-$350

Payment Terms : D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 50000 pcs per month

Delivery Time : 1-3 workdays

Customization : Customization From 10 To 6700MHZ，10-200W

Frequency And Power : 700-6000MHZ 80W

Gain : 45dBm

Dimensions : 170*77*24.5MM

Weight : 750g

Operating Voltage : 28-32 V

Operating Ambient Temperature : -10～+55℃

Highlight : FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module

Contact Now

Product Parameters

700-6000MHz 80W anti drone module for anti drone system

Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 420-460MHZ 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 420-460MHz 50W power amplifier module/Anti drone module.

Item name	Technical parameters
Working frequency	700-6000MHz (Support customization from 10 to 6700MHZ )
Power	80W (Support customization from 10W to 200MHZ )
Supply Voltage	DC 28-32V
Max Output Power	45 dBm
Working Efficiency	≥45%
Passband Riplpe	≤5dB
Operating Temperature	-10~+55ºC
Power supply requirements	≥9A
RF Connector	SMA, output N-master adapts to different needs
Size	1707724.5(Excluding Connector)
Weight	750g
Connect line red	DC28-32V
Connect line black	GND
Connect line white	ENABLE

Product Description

80W 700-6000MHz GaN RF Anti-Drone Module for DJI & Autel

Lead time

Quantity(PCS)	<100pcs	<500	500-1000	>1000
Lead time(Days)	3	3-5	7-12	To be negotiated

Customization

Item	Logo	Frequency	Power	Packing
MOQ(PCS)	1	1	1	1

Company profile

80W 700-6000MHz GaN RF Anti-Drone Module for DJI & Autel

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.

Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.

Packing and Delivery

Selling Units:	Single item
Single package size:	20X10X5 cm
Single gross weight:	0.2kg
Package Type:	Each piece is individually packed into a bag and then packed into a carton.

80W 700-6000MHz GaN RF Anti-Drone Module for DJI & Autel

FAQ

1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?
